Product Description
Introduction

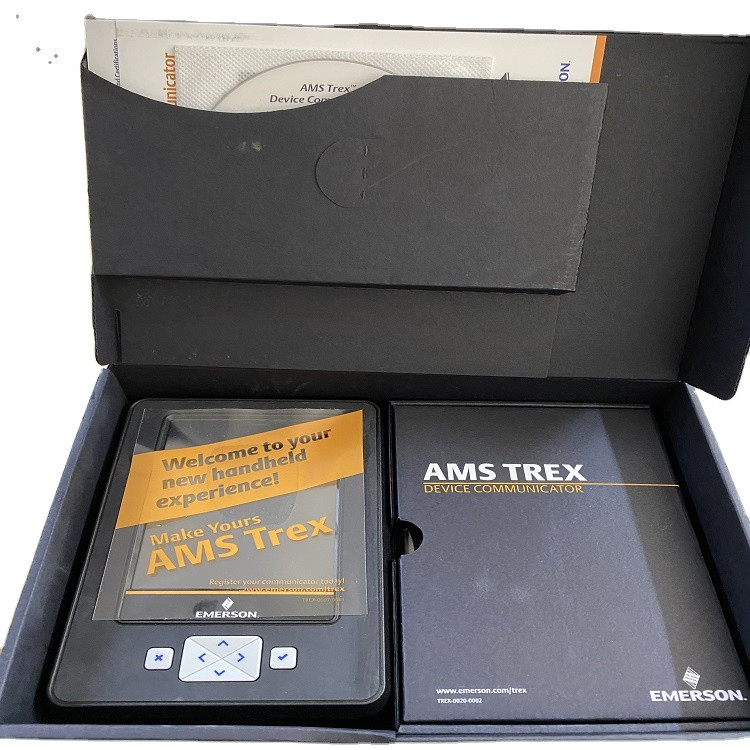

The AMS Trex Device Communicator expands the long line of Emerson handheld devices while adding new capabilities that adapt it to consumer expectations for mobile device functionality.
Technicians armed with a Trex communicator won’t waste time bringing devices back to the shop for analysis or reconfiguration. Problems with Foundation Fieldbus and HART devices can be diagnosed in the field while the devices are still installed. Simple issues can be addressed on the spot, avoiding unnecessary, and potentially destructive, invasive physical investigation of the problem.
Technicians need powerful and portable diagnostic tools so they can identify and troubleshoot device issues to minimize process upsets. With a Trex communicator in hand, you can properly diagnose device issues in the field. With the right
handheld, maintenance teams will experience significant savings in work hours and peace of mind knowing that problems will be fixed quickly and properly the first time.
| Weight | Approximately 2.9 lbs (1330 grams) | | Microprocessor | 800 MHZ ARM Cortex A8/NXP | | Memory Internal Flash | 2 GB NAND and 32 GB extended flash | | RAM | 512 MB DDR3 SDRAM | | Display | 5.7 in (14.5 cm) color VGA resistive touchscreen | | Battery Operating Time | 8+ hours of typical use | | Operating Temperature | -20 to 55°C (-4 to 122°F) | | Enclosure Rating | IP54 | | Shock | Tested to survive a 1-meter drop test onto concrete | |
Rugged and Reliable
For a communicator to be useful in the field, it must be built to last and ready for anything. The Trex communicator is designed
to withstand the harsh conditions in and around manufacturing facilities. The rugged device is easy to hold, yet designed to take
the bumps and drops that come from normal use in the plant. In addition, the Trex communicator is protected against moisture
and extreme temperatures, allowing you to work regardless of environmental conditions. The sturdy exterior is designed in accordance with Intrinsic Safety standards to limit the buildup of static electrical energy. Unlike consumer-grade mobile
devices, the Trex communicator will withstand the abuse of a harsh field environment.
Designed based on user feedback and with field use in mind, the carrying case features an access window that allows you to
use the communicator and contains pockets large enough to carry the charger, extra lead sets, or other tools you may need
in the field.
Features
1. Eliminate the need for specialized tools with power the loop functionality
2. Quickly resolve field devices issues with advanced diagnostics
3. Configure and test valves inline
4. Improve efficiency with a modern, intuitive user interface
5. Intrinsically safe to go anywhere you go
